Installation Clearance Guide

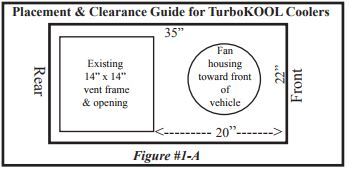

Position the TurboKOOL with intake grill to the rear. See Figure #1-A below. With hood removed, place TurboKOOL over the roof vent frame so it fits flush to the roof and level with the ground. It is sealed to the top side of the roof with the verticle flanges facing upwards to form a dam around the hole in case a water line should leak.(Vehicle should be relatively level for installation.) If mounting to a sloped or curved roof, you will need a plenum, which can be fabricated from sheet metal, marine plywood or polyethyene. If necessary, a mounting gussett can be used to lend rigidity to the mounting serface. It’s made of 1/4” thick plastic and is usually fixed to the underside of the roof.
